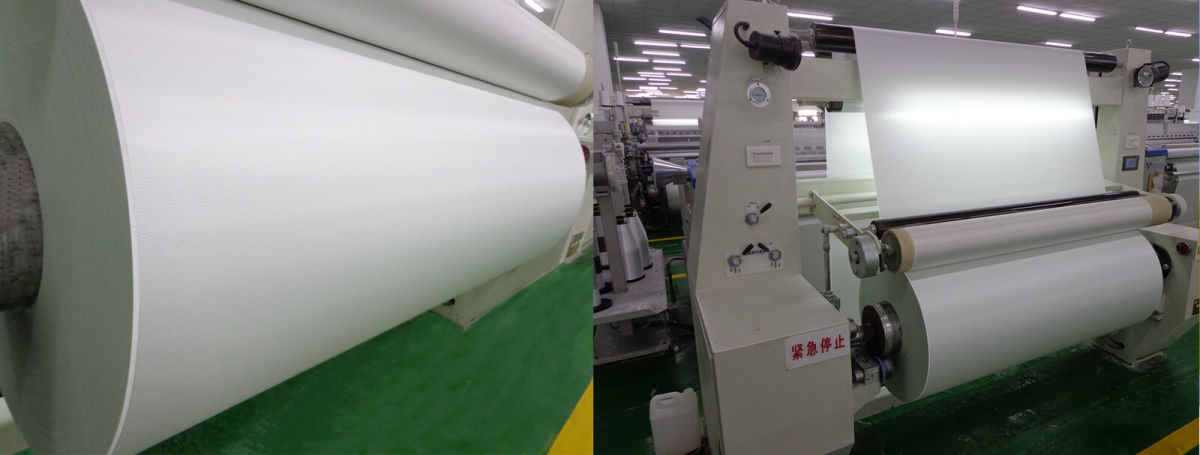

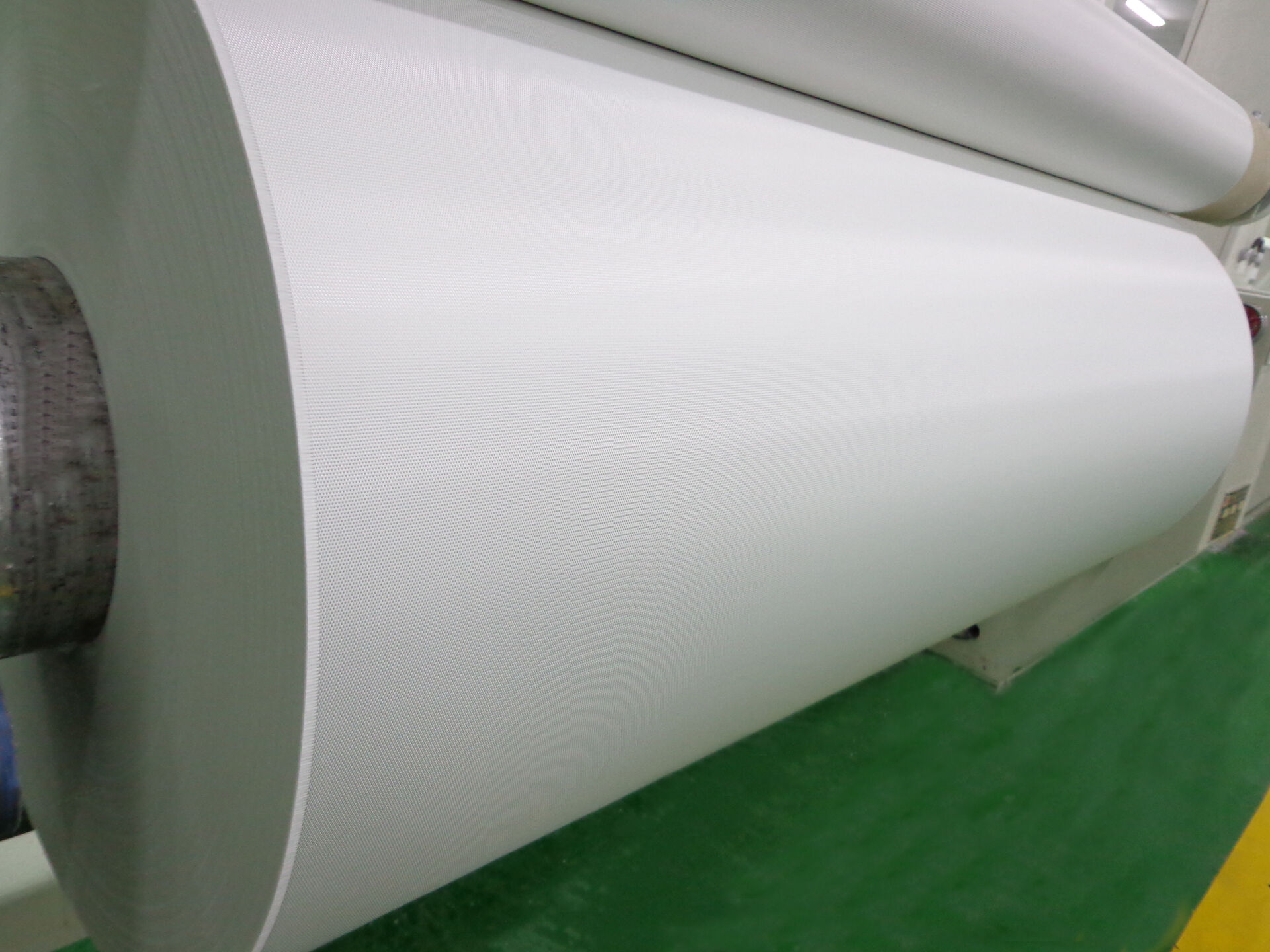

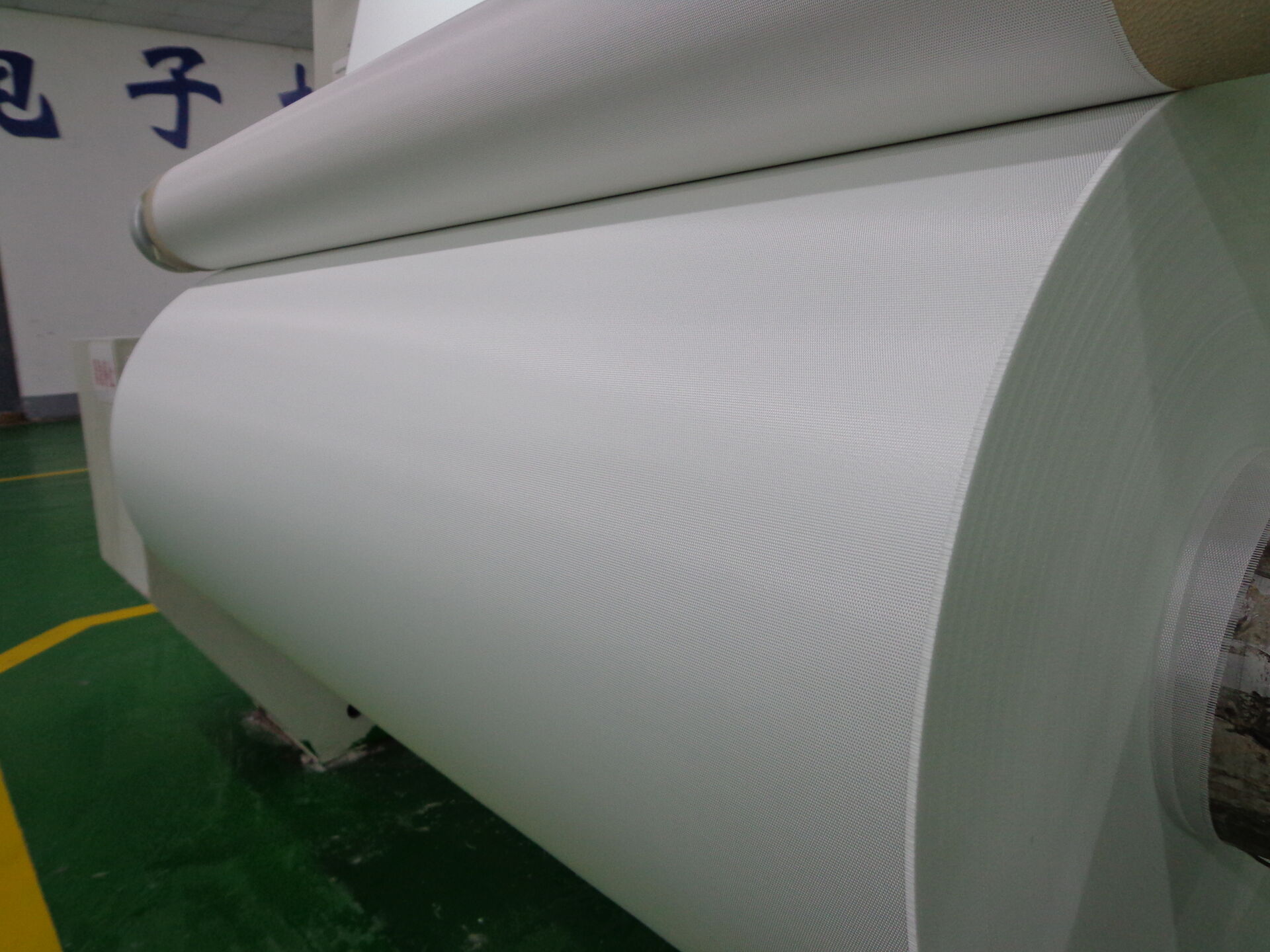

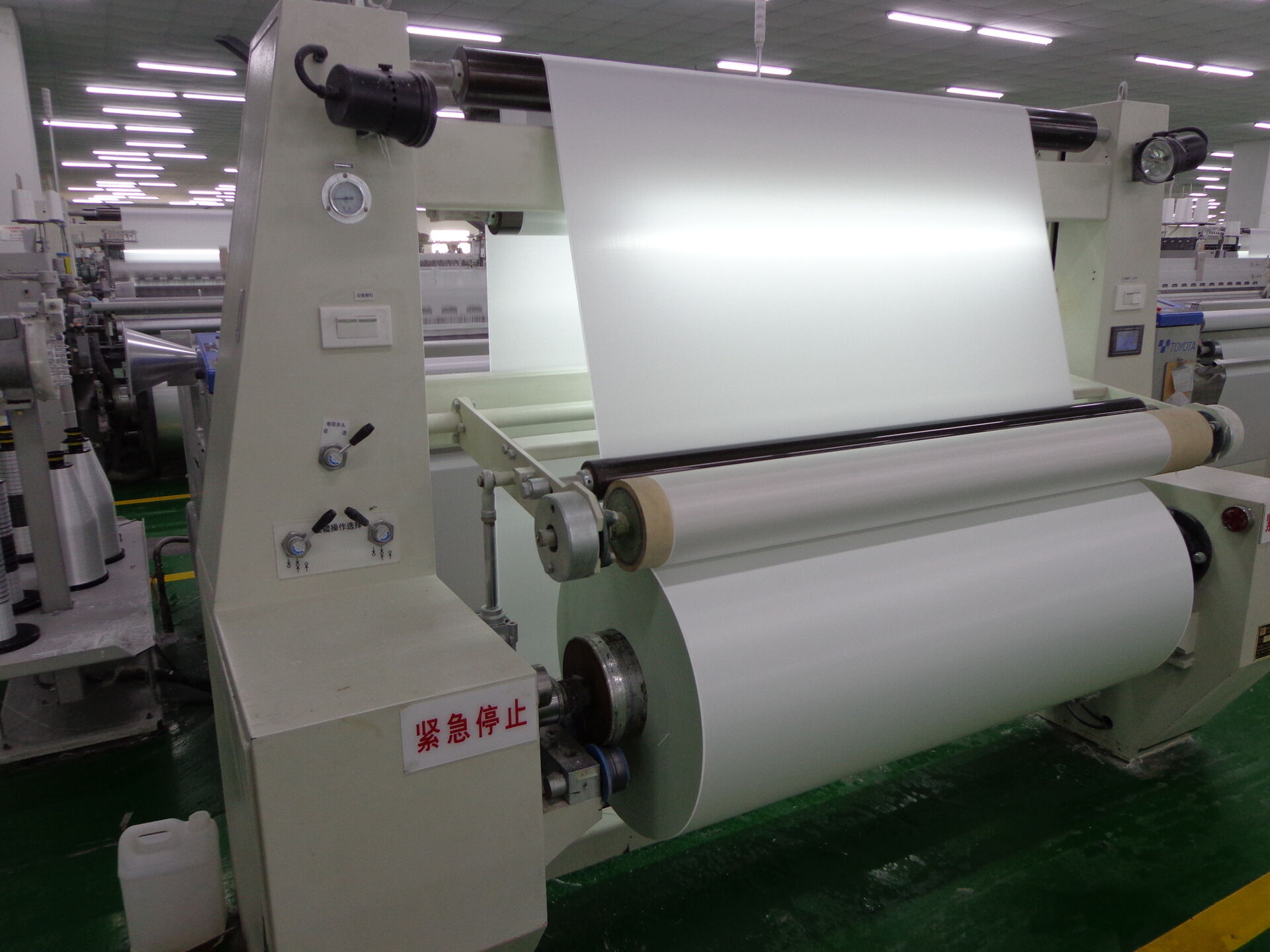

Fiberglass fabric is a kind of inorganic nonmetallic material with excellent performance. There are many kinds of glass fiber. The advantages are good insulation, strong heat resistance, good corrosion resistance and high mechanical strength, but the disadvantages are brittle and poor wear resistance. Glass fiber is usually used as reinforced materials in composite materials, electrical insulation materials and thermal insulation materials, circuit board and other fields of national economy.
USE

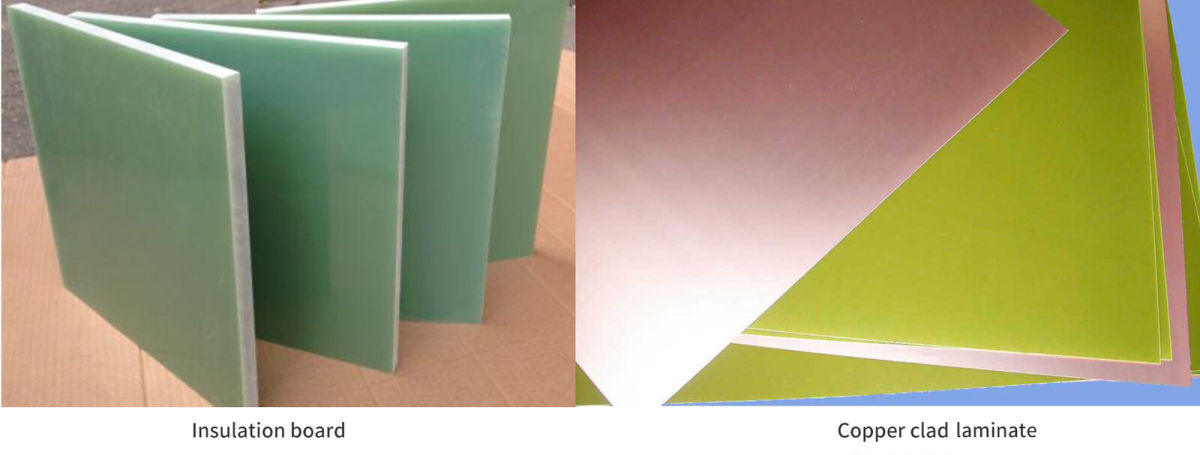

E-glass fiber fabric is characterized by good wet-out, high strength, corrosion-resistant, insulation, etc. It is widely used in CCL、air craft and spaceflight industry, ship industry, chemical industry, electronic industry，medical industry, military industry, sports goods, etc.
FIBERGLASS FABRIC SPECIFICATION |
| 品种 | 7637 | 7630 | 7628M | 7628L | 7615 | 7615H | 1506 | 2116 | 2113 | 3313 | 1080 | 106 |
项目 |
|
经 纱 WARP YARN | ECG75 1/0 | ECG67 1/0 | ECG75 1/0 | ECG75 1/0 | ECG75 1/0 | ECG75 1/0 | ECE110 1/0 | ECE225 1/0 | ECE225 1/0 | ECDE300 1/0 | ECD450 1/0 | ECD900 1/0 |
纬 纱 WEFT YARN | ECG37 1/0 | ECG67 1/0 | ECG75 1/0 | ECG75 1/0 | ECG150 1/0 | ECG150 1/0 | ECE110 1/0 | ECE225 1/0 | ECD450 1/0 | ECDE300 1/0 | ECD450 1/0 | ECD900 1/0 |
密度 (ends/in) DENSITY | 经 WARP | 44±2 | 42±2 | 44±2 | 42±2 | 44±2 | 44±2 | 48±2 | 60±2 | 60±2 | 60±2 | 60±2 | 56±2 |
纬 WEFT | 20±2 | 33±2 | 33±2 | 32±2 | 33±2 | 43±2 | 44±2 | 58±2 | 56±2 | 62±2 | 47±2 | 56±2 |
标重 (g/㎡) WEIGHT | 228±5 | 220±5 | 210±5 | 198±5 | 160±4 | 178=±4 | 164±3 | 105±3 | 78±3 | 81.4±2.5 | 47.5±2.5 | 24.5±2.5 |
幅宽 (mm) WIDTH | 980~1310 | ＋8 | 980~1310 | ＋8 |
|
|
－0 | －0 |
|
|
抗拉强力(N/25mm) BREAK STRENGTH | 经 WARP | ≥400 | ≥400 | ≥400 | ≥400 | ≥300 | ≥300 | ≥300 | ≥250 | ≥250 | ≥200 | ≥160 | ≥50 |
纬 WEFT | ≥300 | ≥300 | ≥300 | ≥300 | ≥180 | ≥200 | ≥250 | ≥220 | ≥120 | ≥200 | ≥90 | ≥40 |
L.O.I (%) | 0.1±0.04 | 0.1±0.04 | 0.1±0.04 | 0.1±0.04 | 0.1±0.04 | 0.1±0.04 | 0.1±0.04 | 0.12±0.05 | 0.12±0.05 | 0.12±0.05 | 0.12±0.05 | 0.12±0.05 |
厚度 (mm) THICKNESS | 0.210±0.02 | 0.185±0.02 | 0.180±0.02 | 0.173±0.012 | 0.135±0.012 | 0.140±0.012 | 0.150±0.012 | 0.100±0.012 | 0.079±0.012 | 0.084±0.012 | 0.055±0.012 | 0.033±0.012 |
回潮率(%) MOISTURE REGAIN | ≤0.30 |
羽边长度 (mm)EDGE LENGTH | ≤5 |
透气率(mm/s)VENTILATION | 200∼500 | 40∼100 | 40∼170 | 100∼250 | 200∼400 | 170∼220 | 300∼600 | 600∼900 | 1000∼2000 | 900∼2000 | 4000∼5600 | 4500∼6000 |
纯水比电阻 (MΩ/cm) | ≥1.00 |
纯水PH值 (PH)WATER PH | 5.5 ≤ PH ≤ 7.5 |
偶联剂溶液(PH)COUPLING PH | 3 ≤ PH ≤ 4 |
Products specifications shall according with the request of customers.This catalog only lists some representational products. For more product information,please contact our company. |
